The FP Safe 5:1 FP-BP Pulley Block is a system developed to assist in controlled lifting and lowering of loads and people , providing reduced effort and greater control during operation.
Its configuration utilizes a 5:1 mechanical advantage system , which allows for a significant reduction in the force applied by the user or rescuer during lifting, moving, and rescue procedures.
The assembly uses one FP Safe self-locking pulley combined with two FP Safe double pulleys , forming a complete load reduction system. The self-locking pulley has a rope locking mechanism in both directions and an overspeed locking system , activated in fall situations, assisting in movement control.
The FP-BP was developed for application in different operational scenarios, including technical rescue, confined spaces, rope access, and industrial operations , offering practicality in the assembly, organization, and transport of the equipment necessary for the operation.
One of the main advantages of the FP Safe Pulley Block is the reduction in response time . The assembly brings together the main components needed to assemble the load reduction system, eliminating the need to individually separate each piece of equipment before operation and providing greater agility in system preparation.
In addition to practicality, the system provides operational efficiency , as its 5:1 mechanical advantage reduces the effort required to move cargo or people, offering greater control during lifting, moving, raising, lowering, and rescue procedures.
The kit includes 120 meters of rope , carabiners, a sling-type strap, and a backpack/bag for storage, forming an organized solution for professionals who need a load reduction system ready for different applications.
Ideal for professionals in the NR-33, NR-35, rope access, vertical rescue, technical rescue, confined spaces, oil and gas, offshore, industrial inspection and maintenance sectors, the FP Safe 5:1 Pulley Block provides practicality, efficiency and organization for professional operations.
Complete load reduction system with a 5:1 mechanical advantage .
It reduces the effort required when moving cargo and people.
It provides greater control during ascent and descent procedures.
It helps reduce response time during rescue operations.
It brings together the main components needed to assemble the system.
Uses 01 FP Safe Self-Locking Pulley .
It has 2 FP Safe Double Pulleys .
Self-locking pulley with a two-way rope locking mechanism.
Overspeed locking system, activated in fall situations.
Includes 120 meters of rope .
It includes carabiners of varying strengths to complete the system.
Includes a 200 cm sling-type strap.
Includes a backpack/bag for organizing, storing, and transporting the set.
Suitable for technical rescue operations and confined spaces.
Suitable for professional load handling and reduction systems.
The FP Safe 5:1 FP-BP Pulley Block is recommended for:
Load reduction systems
5:1 Mechanical Advantage Systems
Rescue in confined spaces (NR-33)
Working at height (NR-35)
Vertical rescue
Technical rescue
Movement of people
Cargo handling
Controlled ascent
Controlled descent
Lifting
Rope access
Industrial operations
Oil and gas
Offshore
Onshore
Industrial inspection
Industrial maintenance
Operations that require reduced effort for movement.
Product: Pulley Block – Load Reduction System
Brand: FP Safe
Reference: FP-BP
Mechanical Advantage: 5:1
System: Load Reduction
Self-locking pulley: 1 unit
Double Pulleys: 2 Units
Oval Screw Carabiners: 2 Units – 25 kN
Carabiners D: 02 Units – 40 kN
Rope: 120 Meters
Sling Type Tape: 1 Unit – 200 cm
Backpack/Carrying Bag: 1 Unit
Locking System: Two-Way Rope Locking
Speeding Lock: Yes
Purpose: To reduce effort in handling, lifting, lowering, hoisting, and rescue operations.

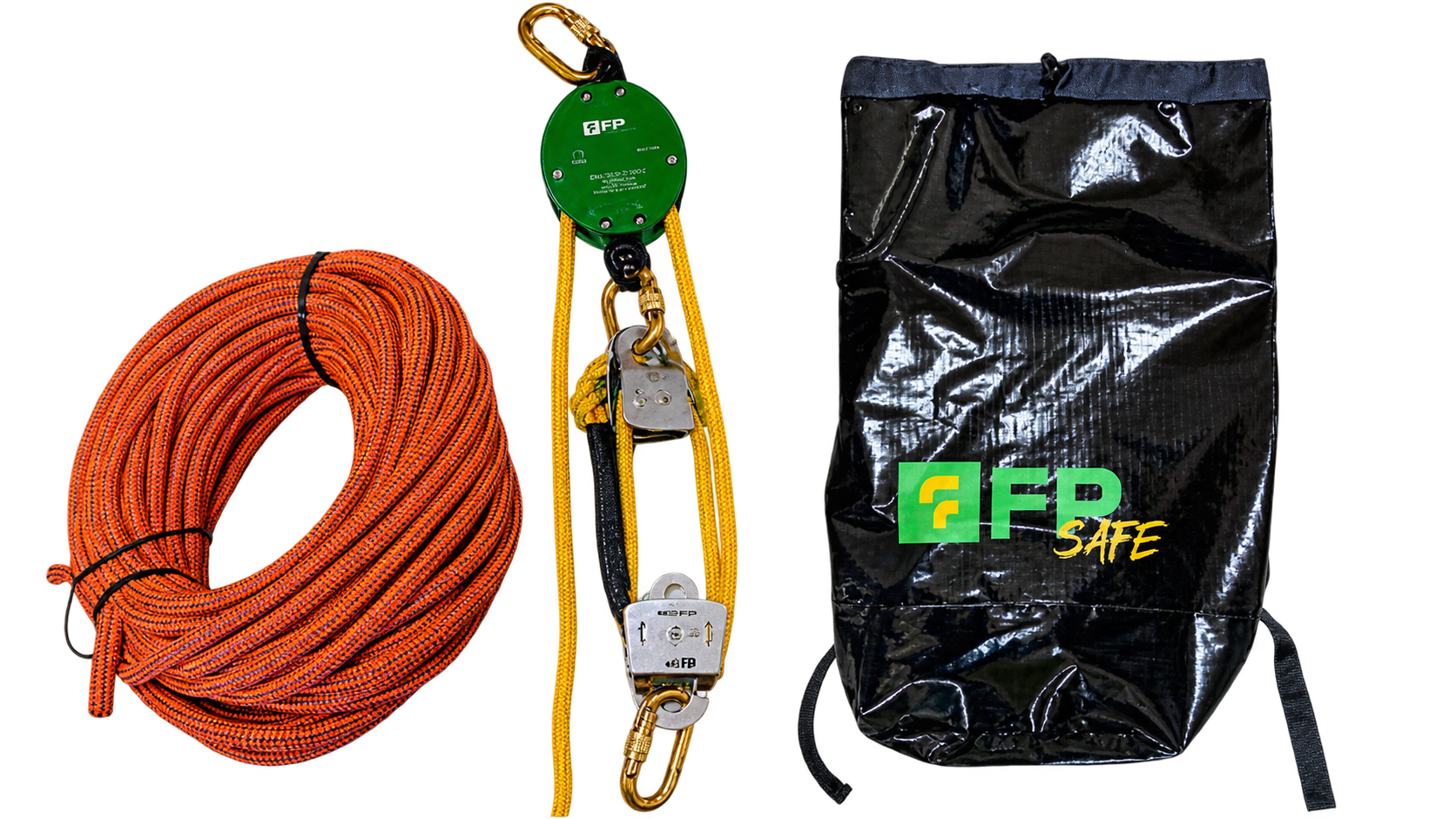

The FP Safe 5:1 FP-BP Pulley Block consists of:
01 Self-locking pulley FP Safe
02 Double Pulleys FP Safe
02 Oval Screw Carabiners 25 kN
02 Carabiners D 40 kN
120 meters of rope
01 Sling-type strap, 200 cm long
01 Backpack/Bag for storing the kit
The component configuration forms a 5:1 mechanical advantage system , designed to reduce the effort required during compatible operations involving the movement of loads and people.
Use the equipment only if you are a qualified and trained professional .
Perform a thorough inspection before and after each use.
Use appropriate anchor points that are compatible with the characteristics of the operation.
Make sure all components are correctly positioned before starting the move.
Check that the self-locking pulley and locking mechanism are working correctly.
Respect the individual specifications and limitations of each component that makes up the system.
Avoid contact of the components with chemicals.
Protect ropes, tapes, and other components from abrasive surfaces and sharp objects.
Avoid unnecessary exposure to heat sources.
Do not use components that show signs of alteration, deformation, excessive wear, or other damage.
The assembly and use of the system must comply with the technical procedures applicable to the operation.
Before moving people or cargo, make sure the entire system is correctly assembled and inspected.
To ensure greater performance and durability:
Perform an inspection before and after each use.
Keep all components of the assembly clean and dry.
Clean each component according to its respective recommendations.
Do not store cords, tapes, or other components when they are damp or wet.
Avoid contact with chemicals, contaminants, and substances that could damage the materials.
Protect equipment from abrasive surfaces, sharp objects, and excessive heat sources.
Store the set in a dry, well-ventilated place, protected from direct sunlight .
Keep the backpack/carrying bag clean and dry.
Inspect pulleys, carabiners, rope, sling webbing, and other components individually.
If any component shows signs of alteration, deformation, excessive wear, or damage, remove it from service and follow the specific inspection and replacement criteria.
Always respect the recommendations, specifications, and individual limitations of each piece of equipment that makes up the system.
FP Safe develops equipment and systems for professionals who demand performance, durability, and reliability in rope access, rescue, and industrial environments. Their products are developed with the real needs of professional operations in mind.
At FP Solução , you'll find the complete FP Safe 5:1 FP-BP Pulley Block, along with specialized technical support, prompt delivery, ample inventory, and consultative service to help you choose the right system for your operation.
